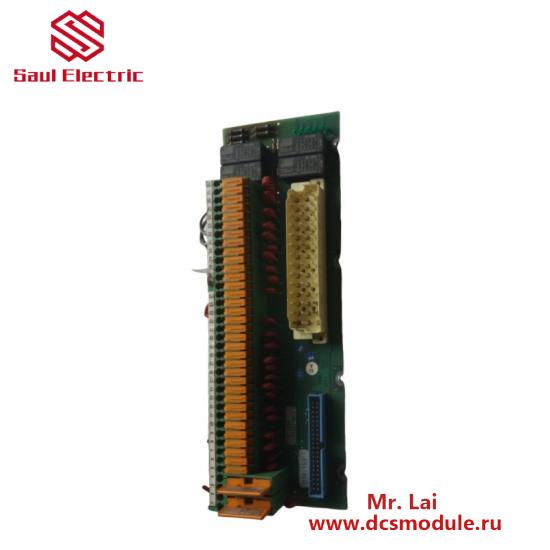

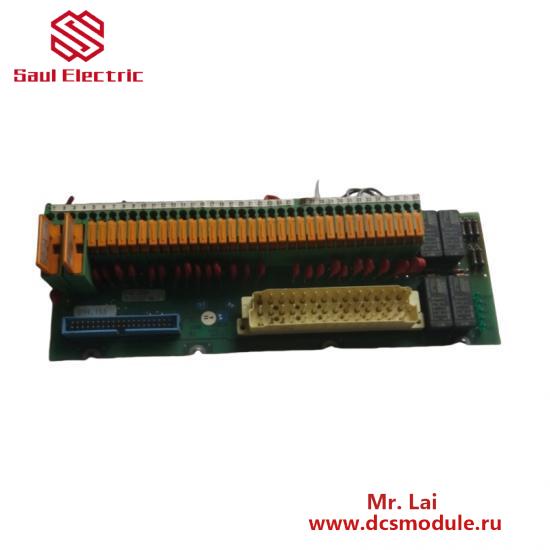

Description
Product Type:Analog Output Module
Manufacturer:ABB
Model Number:DSQC101
Output Channels:4 channels
Signal Range:+-10V
Resolution:12-bit
Isolation:Galvanically isolated channels
Maximum Load Resistance:1000 Ohms
Operating Voltage:10…30V DC
Operating Temperature Range:-25°C to +60°C
Dimensions (D x H x W):102 x 19 x 45 mm
Weight:0.3 kg
The ABB DSQC101 Analog Output Module is an essential component for any industrial automation system requiring high precision analog signal outputs. Designed for robust operation in demanding environments, this module offers reliable performance through its individually galvanic isolated channels. With eight output channels capable of handling ±10V voltage or 0(4)…20mA current ranges, it ensures precise control over your industrial processes.
This module boasts a resolution of 12 bits plus sign, making it highly accurate and suitable for applications where signal fidelity is critical. Its compact dimensions and lightweight design make it easy to integrate into existing systems without requiring extensive reconfiguration.
The maximum load resistance of 500 Ohms ensures stable operation even under varying loads. The DSQC101 is built to withstand the rigors of industrial settings, providing long-lasting performance and minimal maintenance requirements.
Installation is straightforward, with clear instructions included to guide you through the process. Whether you’re upgrading an existing system or building a new one from scratch, the ABB DSQC101 Analog Output Module is an excellent choice for achieving precise control in your industrial automation setup.
