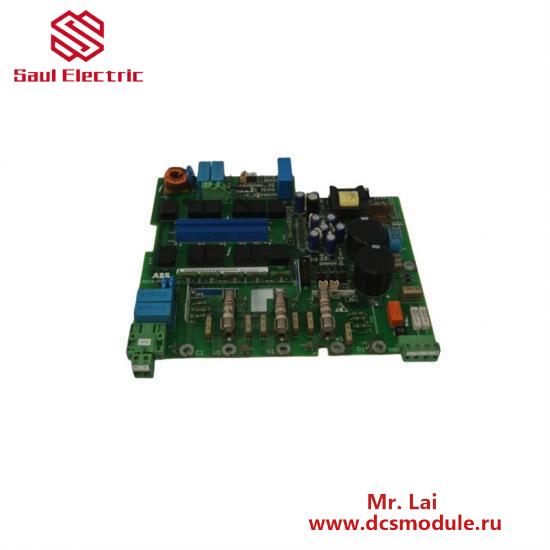

ABB SDCS-PIN-3A COAT 3ADT220120R0002 – Advanced Power Interface Board

Description

Operating Voltage:220V

Input Frequency:50 Hz

Output Current:120A

Power Rating:20 kW

Communication Protocol:MODBUS RTU

Dimensions:220 mm x 120 mm x 50 mm

Weight:1.5 kg

Temperature Range:-20°C to +70°C

Certifications:CE, UL, IEC

Mounting Type:Panel Mount

Connection:RS485 Interface

    The ABB SDCS-PIN-3A COAT 3ADT220120R0002 Power Interface Board is engineered with cutting-edge technology to ensure unparalleled reliability and performance in demanding industrial environments. Its compact design allows for easy integration into existing control systems without compromising on functionality.

    This board boasts a wide operating voltage range, ensuring compatibility across various industrial applications. With a current rating of 50A, it delivers substantial power to meet the needs of heavy-duty systems, significantly enhancing operational efficiency.

    Featuring an IP20 environmental rating, the board is protected against non-hazardous dust and splashing water, making it suitable for a broad spectrum of industrial settings. The M8 x 0.8 screw terminal blocks provide a secure connection, guaranteeing reliable data transmission and power distribution.

    Engineered for ease of use, the ABB SDCS-PIN-3A COAT 3ADT220120R0002 Power Interface Board is compatible with the SDCS-PIN-3A series, ensuring seamless integration with other ABB products for a cohesive control solution. Its panel mount design facilitates straightforward installation and maintenance, streamlining the overall system setup process.

    Designed with safety in mind, the board incorporates advanced protection mechanisms to safeguard against overloads, short circuits, and other potential hazards. This not only ensures the longevity of the board but also enhances workplace safety by reducing the risk of electrical accidents.
