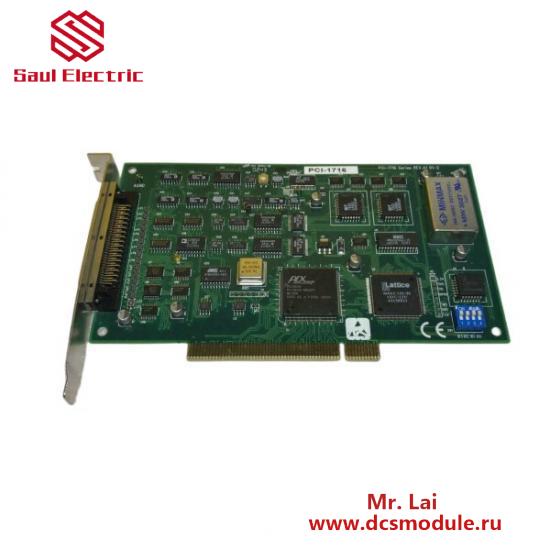

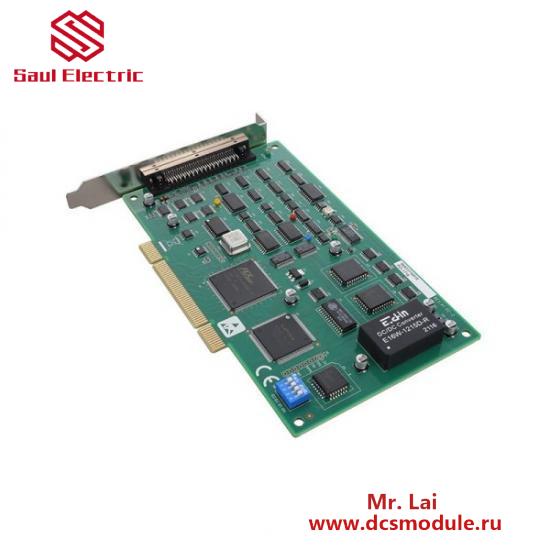

Advantech PCI-1716 Board: High-Performance Data Acquisition Module

Description

Number of Analog Input Channels:16

Analog Input Resolution:12-bit

Analog Input Range:-10V to +10V

Analog Output Channels:16

Analog Output Resolution:12-bit

Operating Temperature:-20°C to +70°C

Power Consumption:Max. 10W

Connection Type:PCI

Communication Interfaces:USB 2.0, Ethernet

Data Transfer Rate:Up to 1 MB/s

    Introducing the Advantech PCI-1716 DA Board, a high-performance 4-channel 12-bit analog output module tailored for industrial control systems. Designed to deliver precise and reliable control signals, this board offers exceptional accuracy and robust performance in harsh environments.

    Featuring a PCI bus interface, the PCI-1716 seamlessly integrates into a wide range of automation systems, enabling efficient data transfer and control commands. Its compact size and versatile signal output capabilities make it an ideal choice for space-constrained applications requiring high precision.

    With an operating temperature range from -40°C to +85°C, the board ensures reliable operation in diverse industrial settings, from freezing cold workshops to hot manufacturing floors. Its 12V DC supply voltage requirement is compatible with most industrial power sources, ensuring easy integration.

    The PCI-1716 DA Board boasts an impressive accuracy level of ±0.02% + 2 LSBs, providing unmatched precision in analog output signals. This feature is crucial for applications requiring high fidelity control, such as robotics, machine tool control, and process automation.

    Each channel is capable of delivering up to 20 mA current, supporting a variety of load types and ensuring sufficient power for a broad spectrum of industrial devices. The board’s compact design, measuring 88.5mm x 51mm x 24mm, allows for efficient use of valuable space in control cabinets or other equipment.
